MS-1200 Radiosharke 2 channels Digital Amplifier

In Stock
550,000.00 Original price was: ₦550,000.00.500,000.00Current price is: ₦500,000.00.
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
Compare
Other people want this. 1 people have this in their carts right now.
Category:

Description

  • 1U High Standard Chassis, Compact, Lightweight and Compact
  • 1class D Power Amplifier Module with fixed Switching Frequency
  • soft switch LLC resonant Switching Power Supply Module
  • Active power factor correction (PFC) for stable operation over full voltage(50v-350v)
  • Unique peak clipping limited and ripple elimination network
  • temperature controlled variable seed fan, airflow from front to back
  • the black panel is equipped with input sensitivity selection switch (0.775v/1v/32db

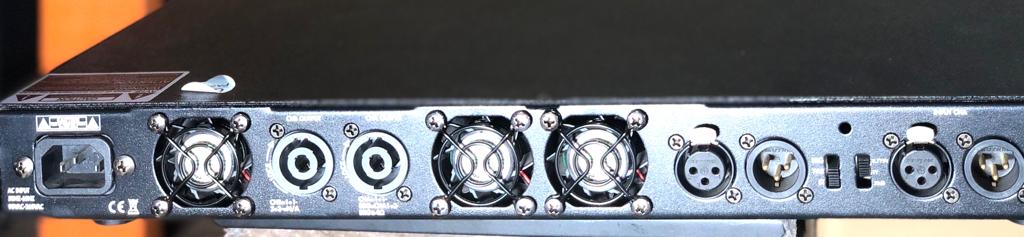

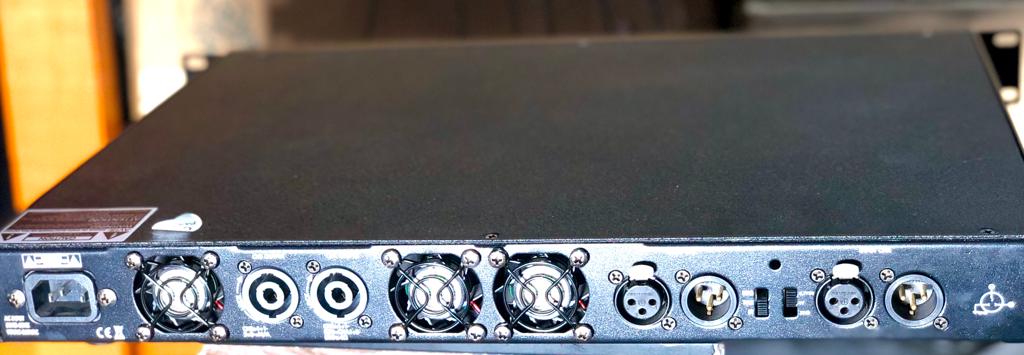

  • Back panel connection mode selection (Stereo, parallel, bridge)



Frequency Response

  • 8ohms 20hz-20k, hz1/8 rated power   -                                                                   + 0.5db
  • Total Harmonic Distortion
  • 8ohms 1khz,1/8 rated power                                                                                  < 0.035%
  • Intermodulation Distortion
  • 8ohms 60+ 7kh, power ratio                                                                                   <0.15%
  • Signal to Noise ratio
  • 8ohms 1khz 1v sensitivity                                                                                    >106db
  • Input Sensitivity                                                                                                   0.775v/1v/32db
  • Input Impedance (balance and unbalance|)                                                      20kohms/10kohms
  • Conversion rate                                                                                                     > 20v/us
  • Damping Coefficient                                                                                             >600
  • Resolution                                                                                                             >70bd
  • Product Dimension (W x L x H)                                                 483X 360x 50mm  483x280x50mm
